This page is designed to give you a sense of what your images should look like. In particular, it will show you the results that you should be getting as your progress through the implementations of the different features of the ray tracer. For all of these images, it is assumed that you have called:

% Assignment2 --in test.directional.ray --out test.bmp --width 640 --height 480 --rLimit 5 --cutOff 0.0001

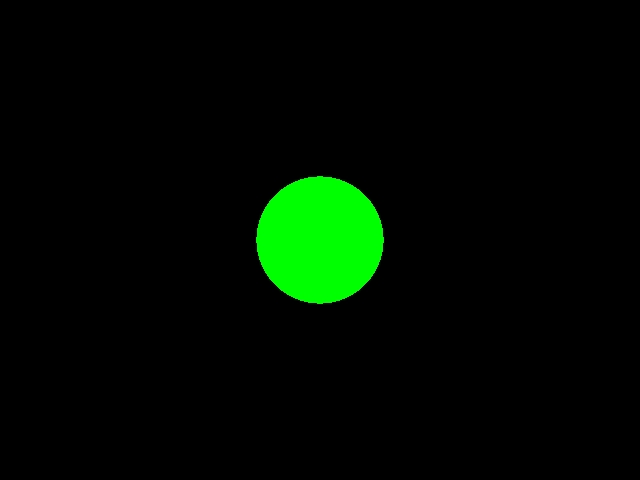

• If you have written your RaySphere::processFirstIntersection properly, the generated image should look like:

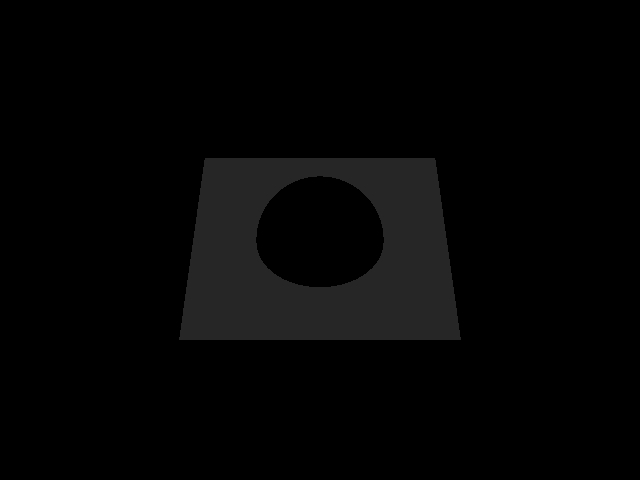

• If you have written your RayTriangle::processFirstIntersection properly, the generated image should look like:

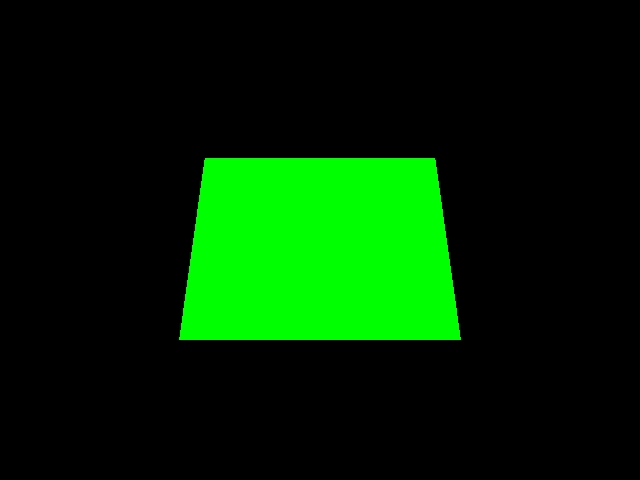

• If you have modified your GetColor so that it returns the emissive and ambient components of the lighting equation, the generated image should look like:

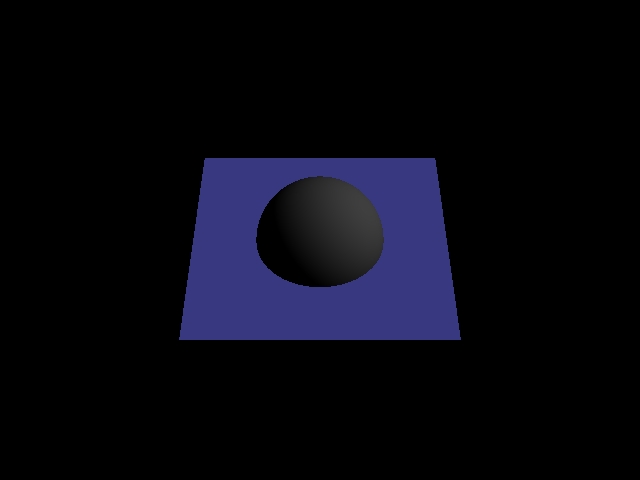

• If you have written your RayLight::getDiffuse properly, the generated image should look like:



• If you have written your RayLight::getSpecular properly, the generated image should look like:

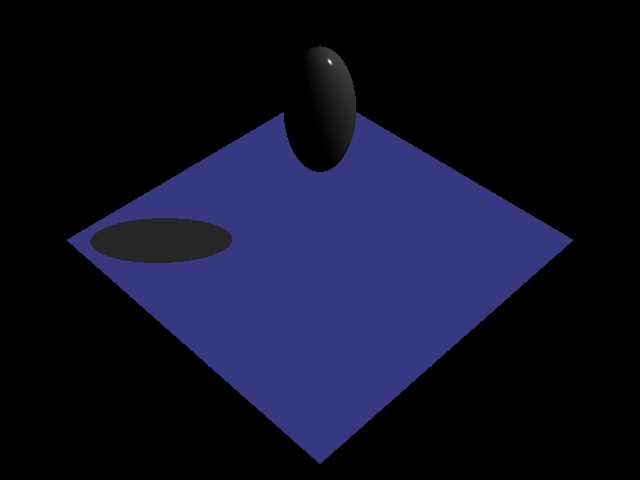

• If you have written your RayLight::isInShadow properly, the generated image should look like:



• If you have modified your GetColor function so that it takes into account the associated transformation of the scene-graph node, the generated image should look like:

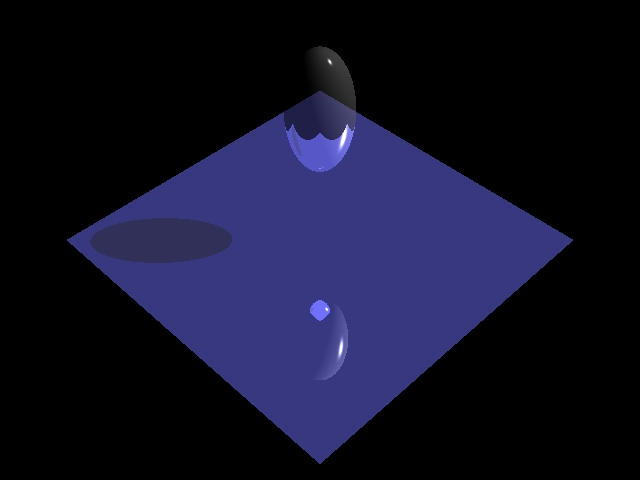

• If you have modified your GetColor to recursively cast rays in the reflected direction, the generated image should look like:

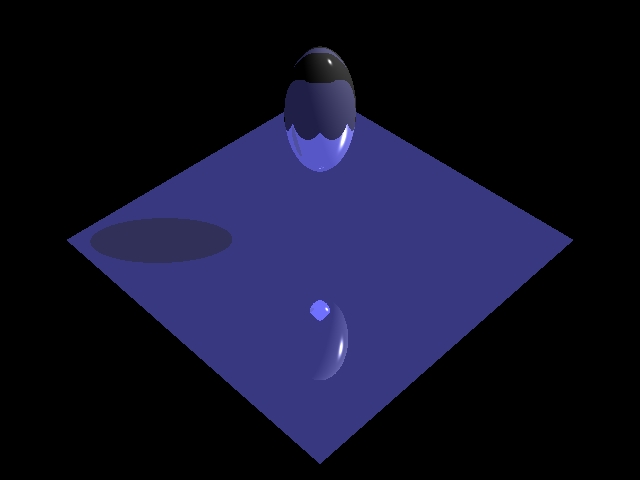

• If you have modified your GetColor to recursively cast rays in the transparent direction, the generated image should look like:



• If you have implemented your RayLight::transparency to use partial shadows, the generated image should look like:

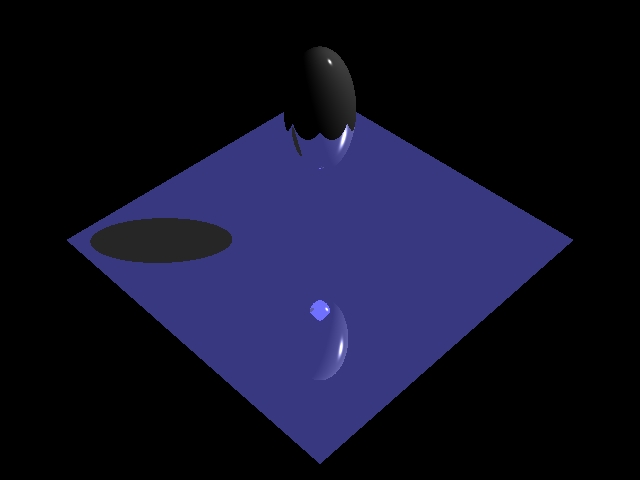

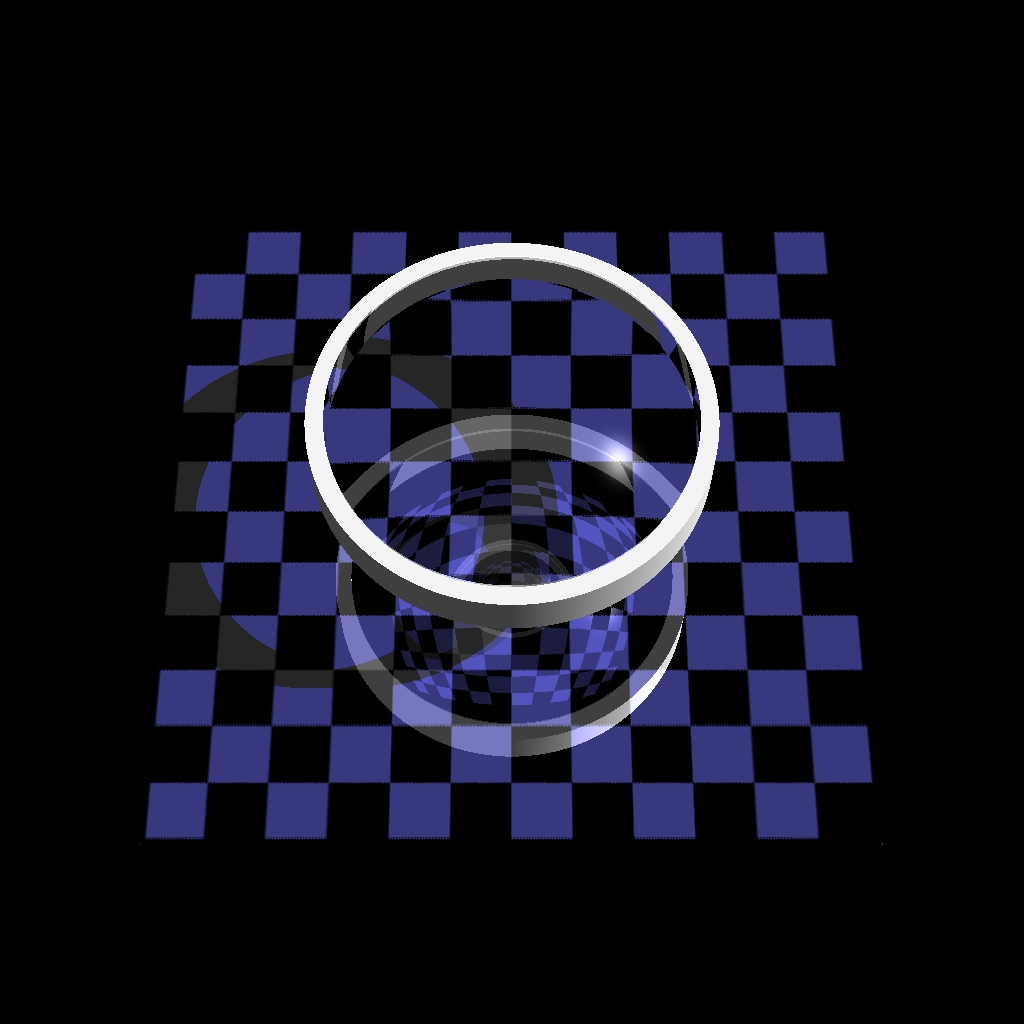

• If you have implemented your RayScene::refract to use indices of refraction, the generated image should look like:

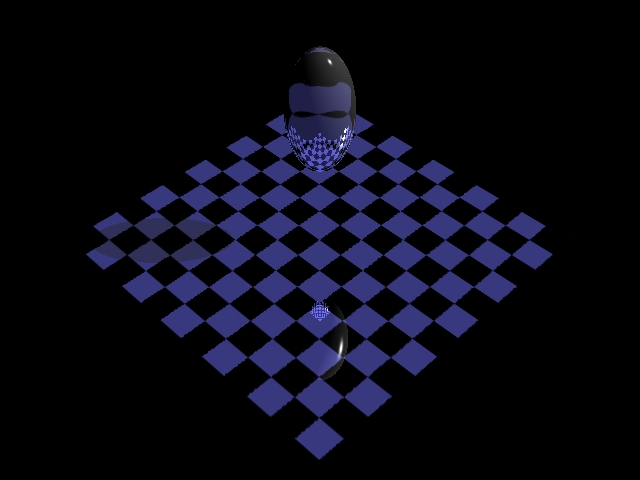

• If you have implemented your Triangle::processFirstIntersection to support texture coordiantes, the generated image should look like:

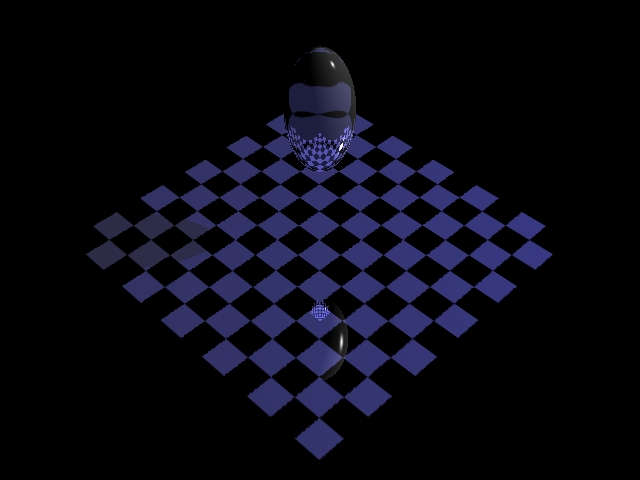

• Your ray-tracer on test.point.ray should look like:

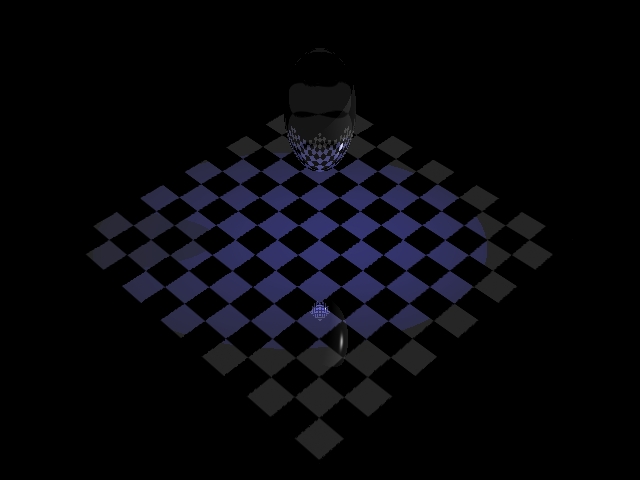

• Your ray-tracer on test.spot.ray should look like:



• Your ray-tracer on test.sphere.ray should look like:

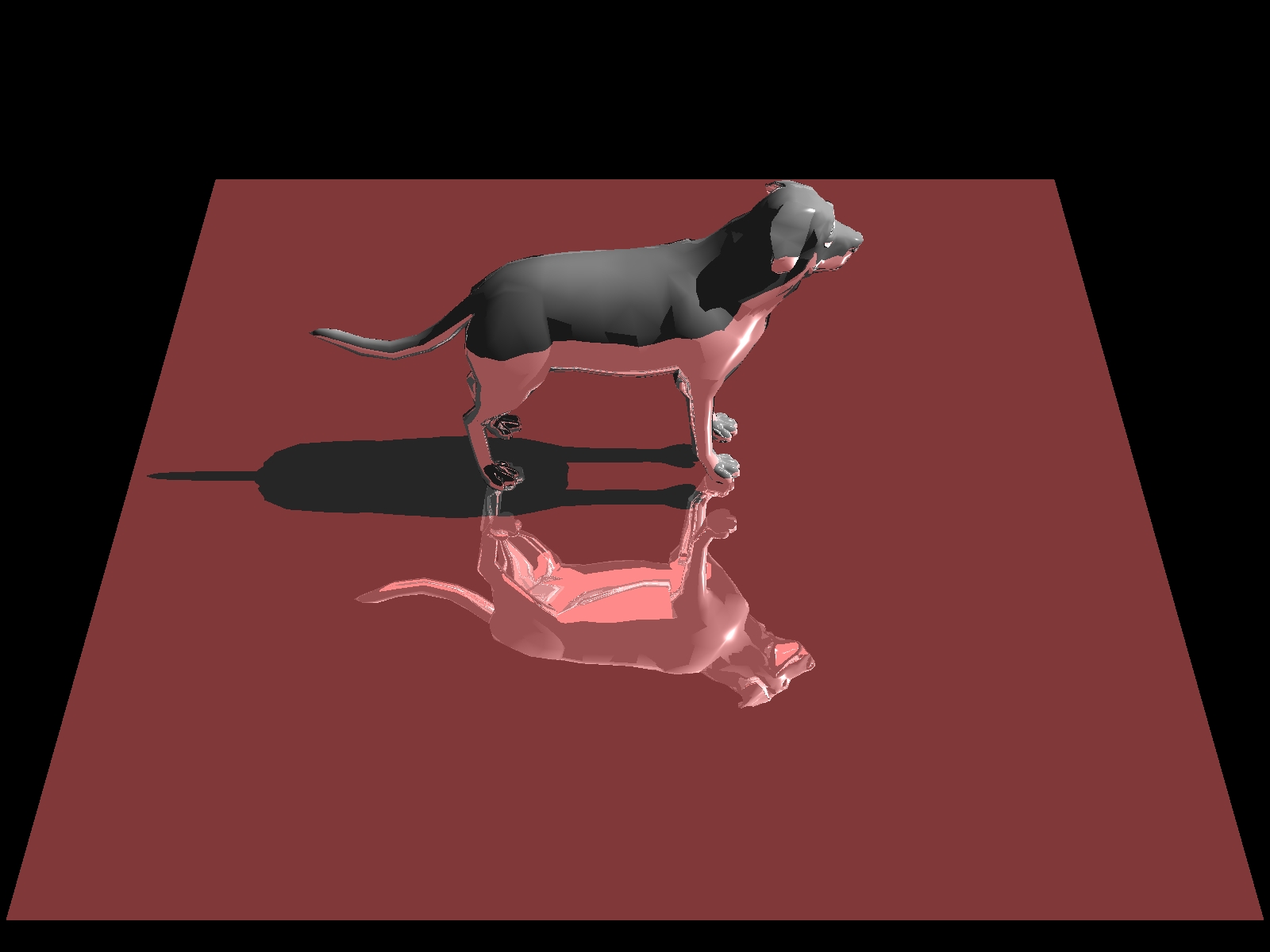

• The resulting image you would get from running your ray-tracer on dog.ray should look like:

  	Read: 0.0172841 seconds Ray-traced: 1.54633 seconds Pixels: 1600 x 1200 Primitives: 3222 Rays: 4,628,797 (2.41083 rays/pixel) Ray-primitive intersections: 10,193,095 (2.2021 intersections/ray) Ray-bounding-box intersections: 58,928,890 (12.7309 intersections/ray)

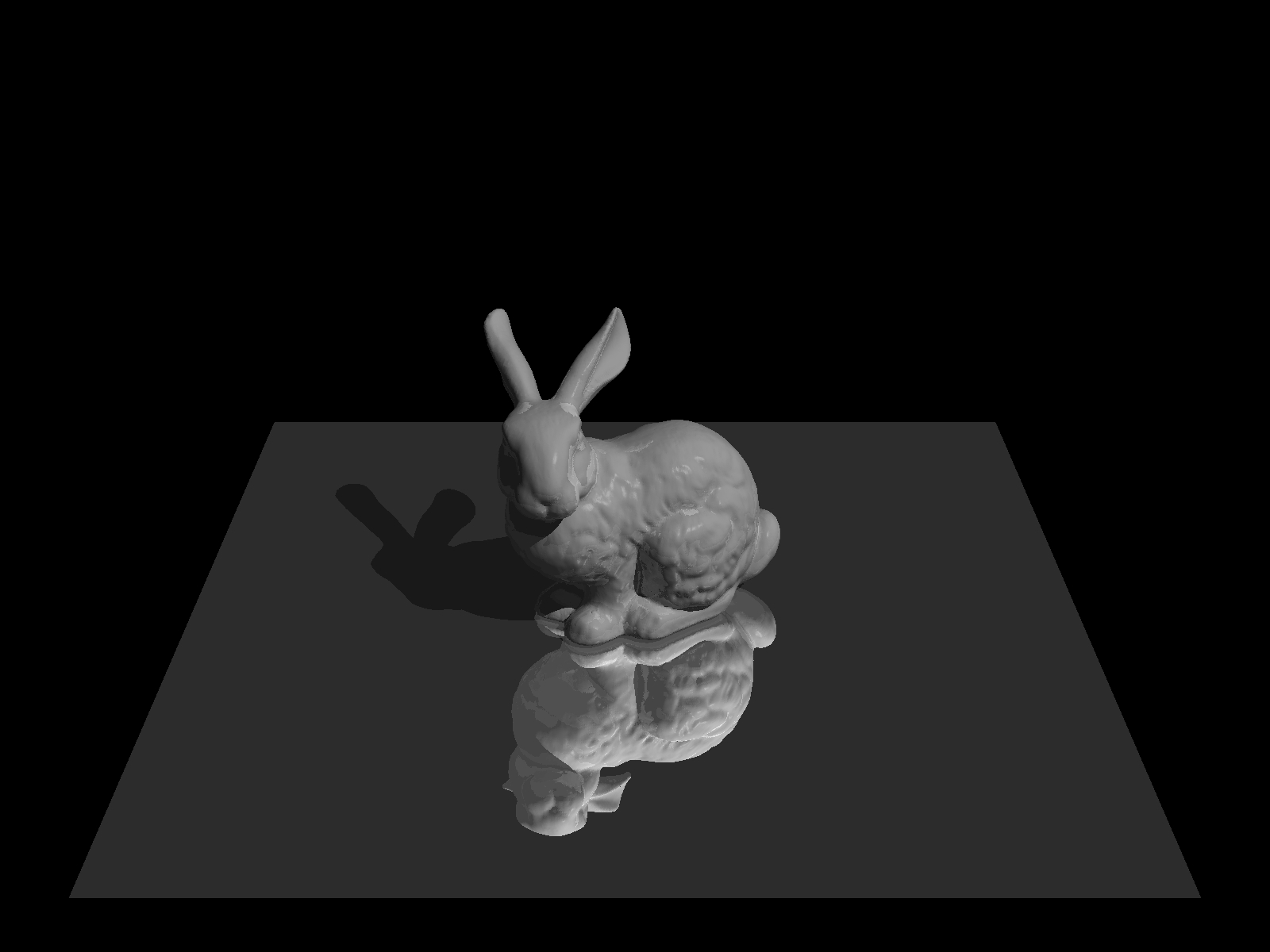

• The resulting image you would get from running your ray-tracer on the bunny.ray should look like:

  	Read: 0.90769 seconds Ray-traced: 1.50059 seconds Pixels: 1600 x 1200 Primitives: 208,578 Rays: 3,596,334 (1.87309 rays/pixel) Ray-primitive intersections: 7,512,391 (2.0889 intersections/ray) Ray-bounding-box intersections: 70,920,709 (19.7203 intersections/ray)

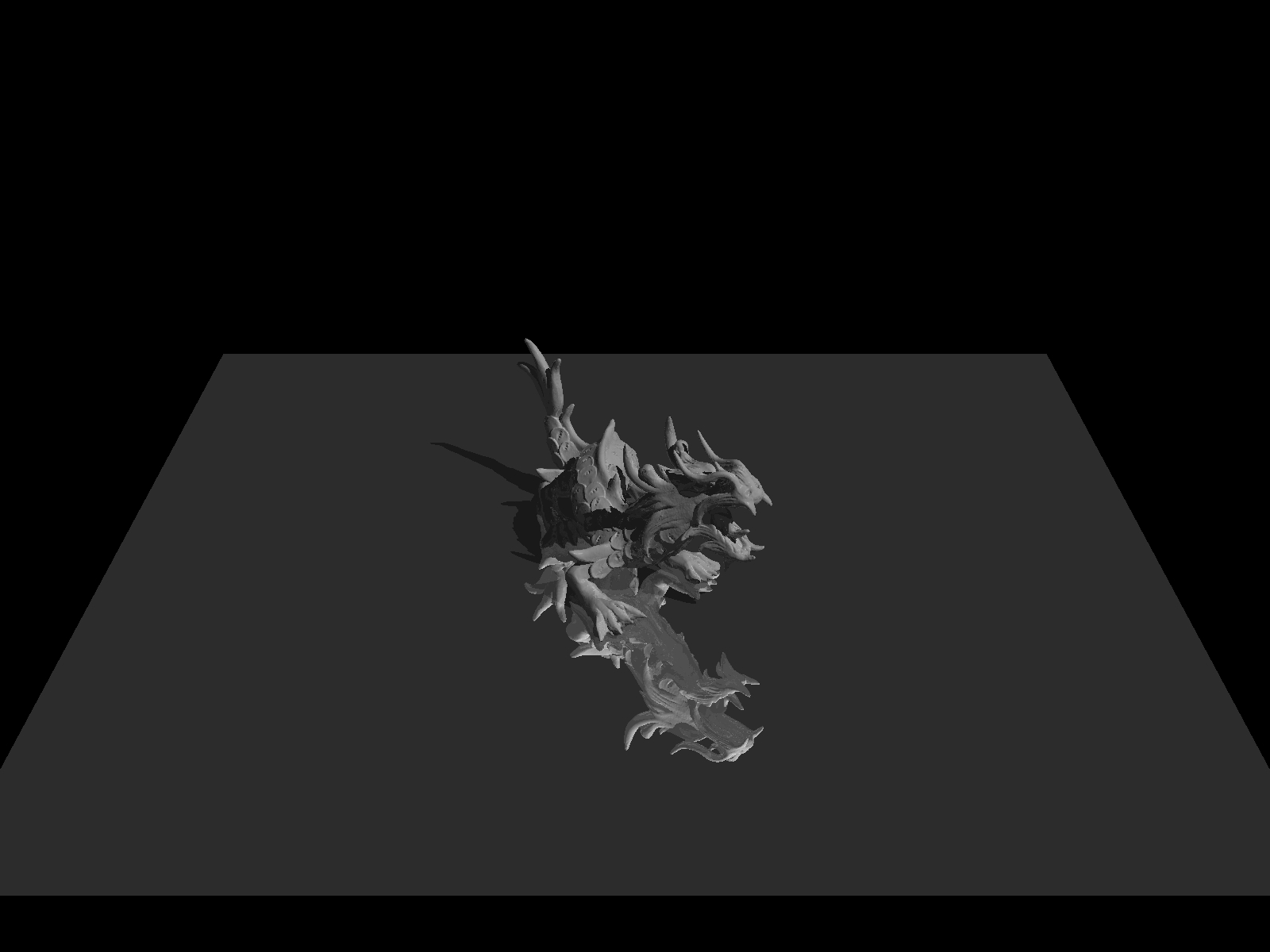

• The resulting image you would get from running your ray-tracer on the dragon.ray should look like:

  	Read: 2.17136 seconds Ray-traced: 1.50963 seconds Pixels: 1600 x 1200 Primitives: 500,002 Rays: 3,982,258 (2.07409 rays/pixel) Ray-primitive intersections: 7,695,994 (1.93257 intersections/ray) Ray-bounding-box intersections: 66,343,987 (16.6599 intersections/ray)

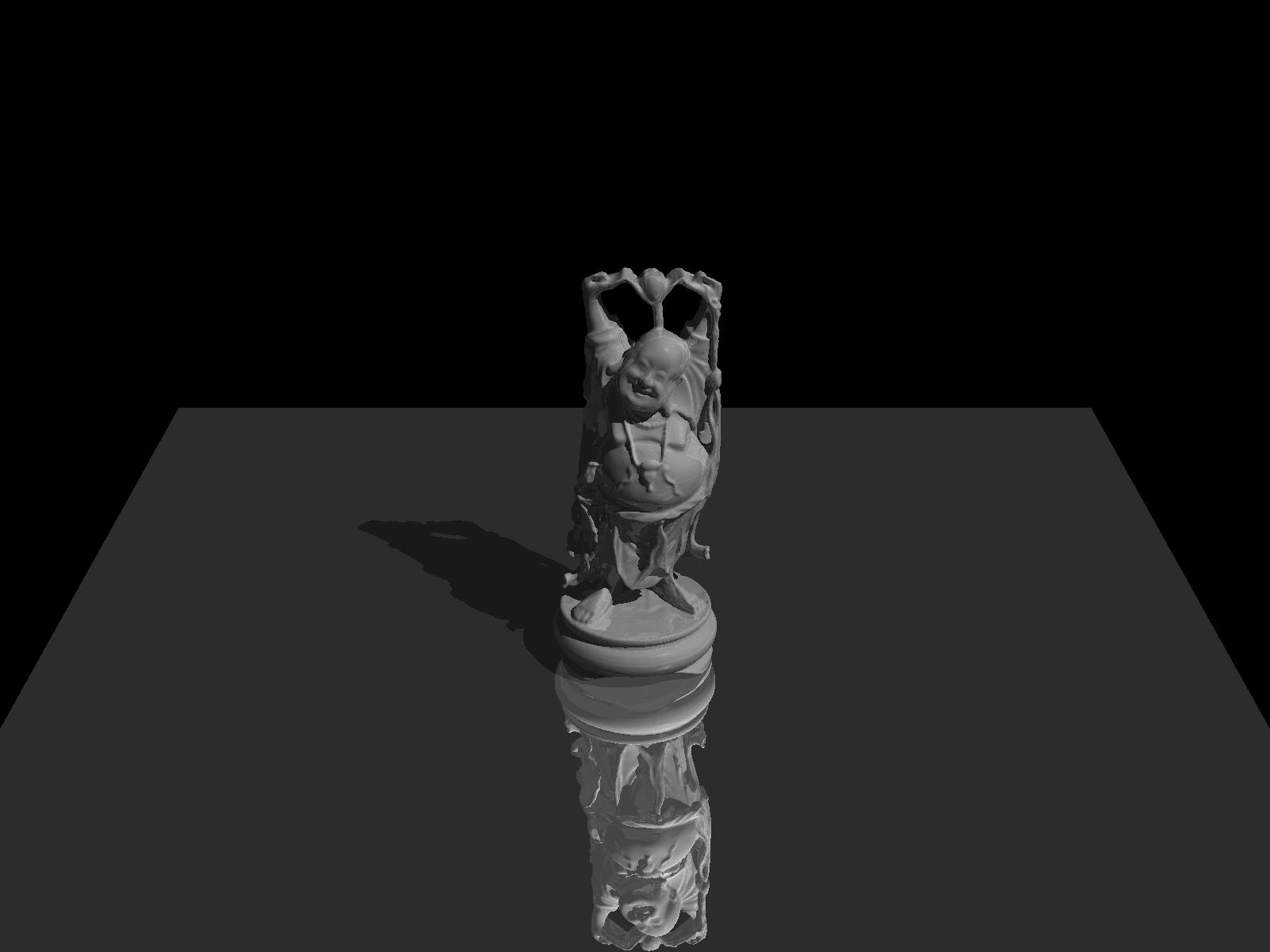

• The resulting image you would get from running your ray-tracer on the buddha.ray should look like:

  	Read: 3.69095 seconds Ray-traced: 2.21403 seconds Pixels: 1600 x 1200 Primitives: 868,330 Rays: 4,319,773 (2.24988 rays/pixel) Ray-primitive intersections: 9,485,303 (2.19579 intersections/ray) Ray-bounding-box intersections: 102,463,017 (23.7195 intersections/ray)

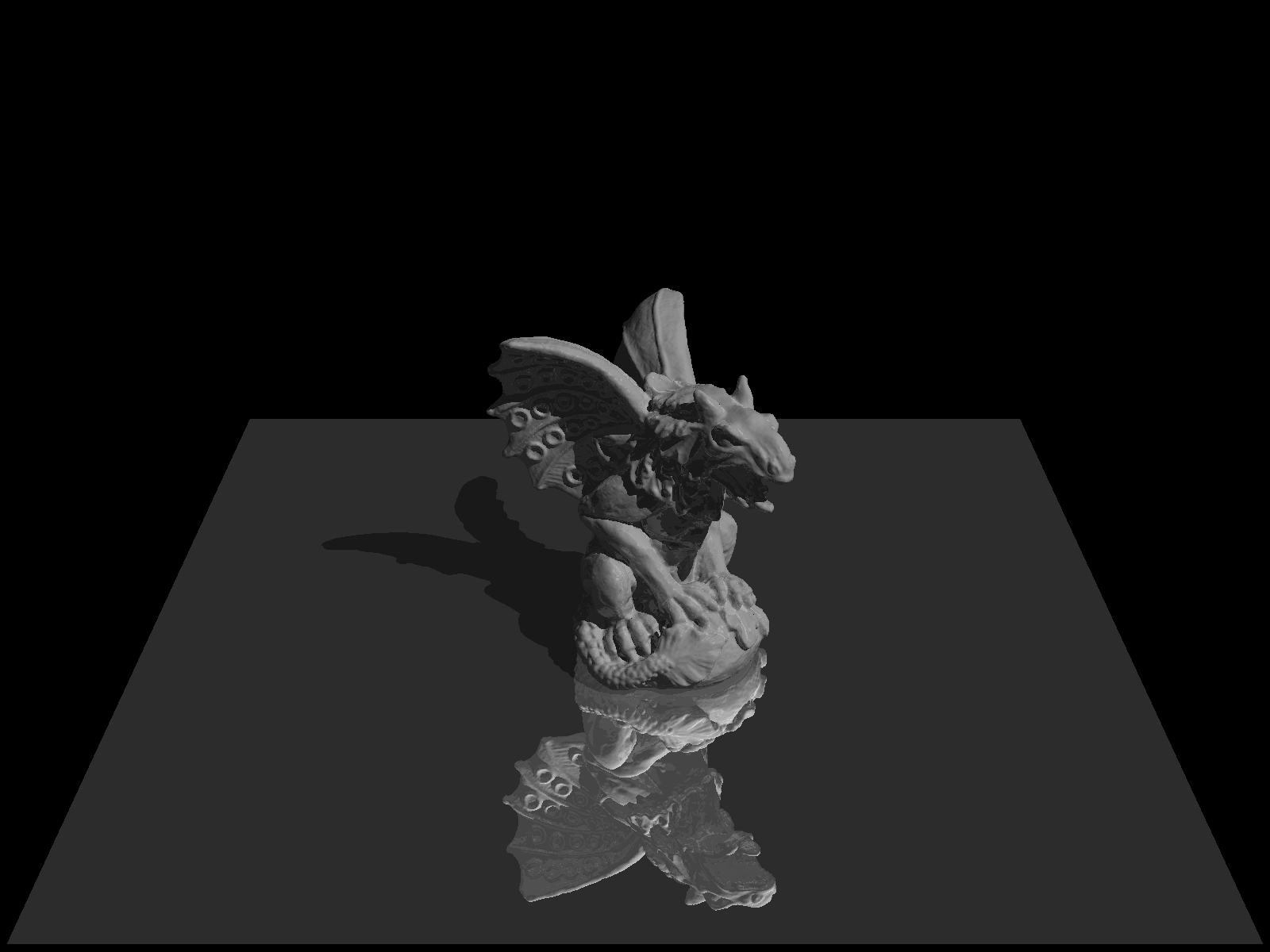

• The resulting image you would get from running your ray-tracer on the gargoyle.ray should look like:

  	Read: 7.52858 seconds Ray-traced: 3.06638 seconds Pixels: 1600 x 1200 Primitives: 1,744,876 Rays: 4,060,079 (2.11462 rays/pixel) Ray-primitive intersections: 10,321,103 (2.54209 intersections/ray) Ray-bounding-box intersections: 146,432,431 (36.0664 intersections/ray)

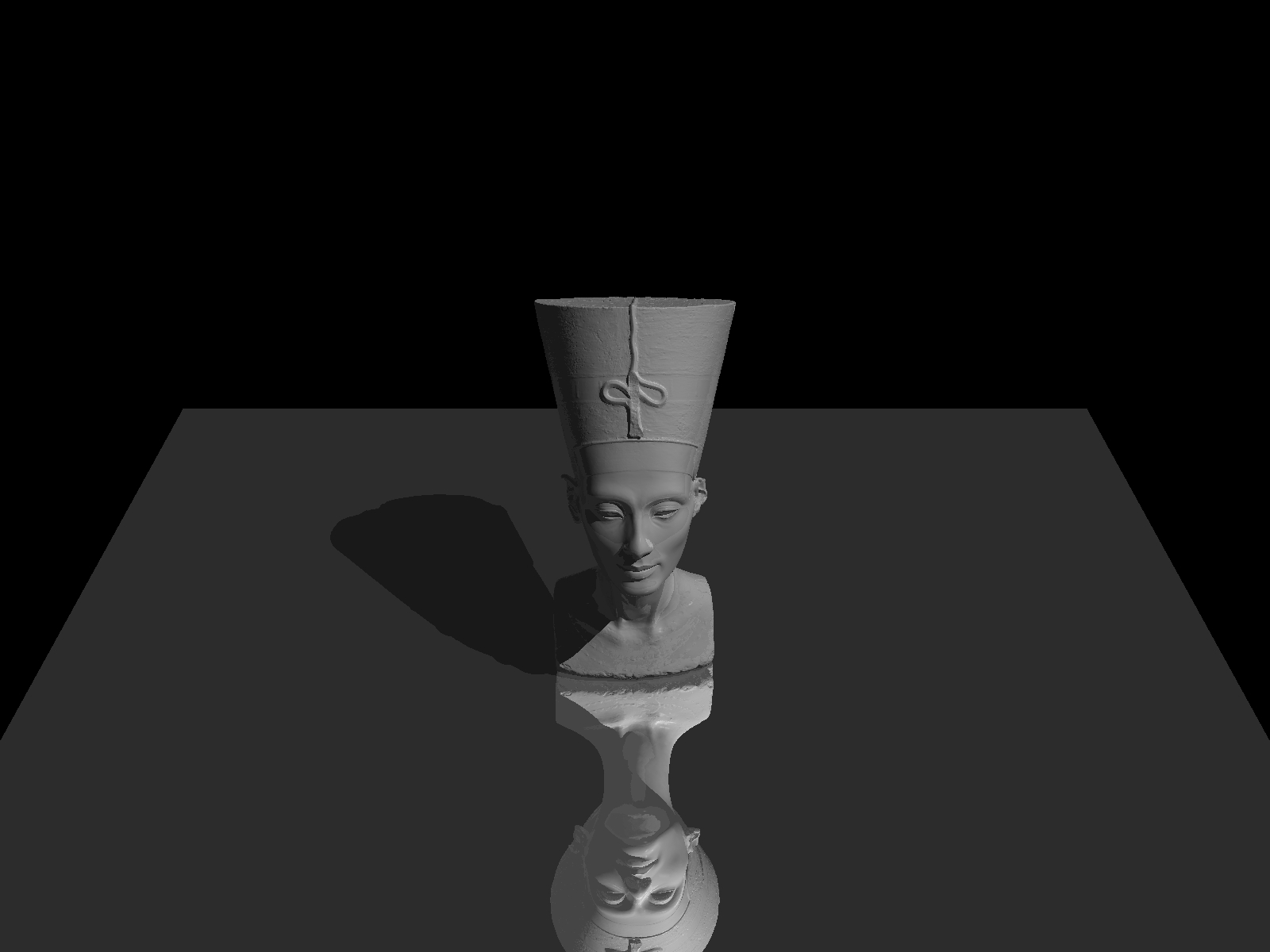

• The resulting image you would get from running your ray-tracer on the nefertiti.ray should look like:

  	Read: 8.65166 seconds Ray-traced: 2.10415 seconds Pixels: 1600 x 1200 Primitives: 2,018,234 Rays: 4,189,187 (2.18187 rays/pixel) Ray-primitive intersections: 8,609,990 (2.05529 intersections/ray) Ray-bounding-box intersections: 89,186,244 (21.2896 intersections/ray)

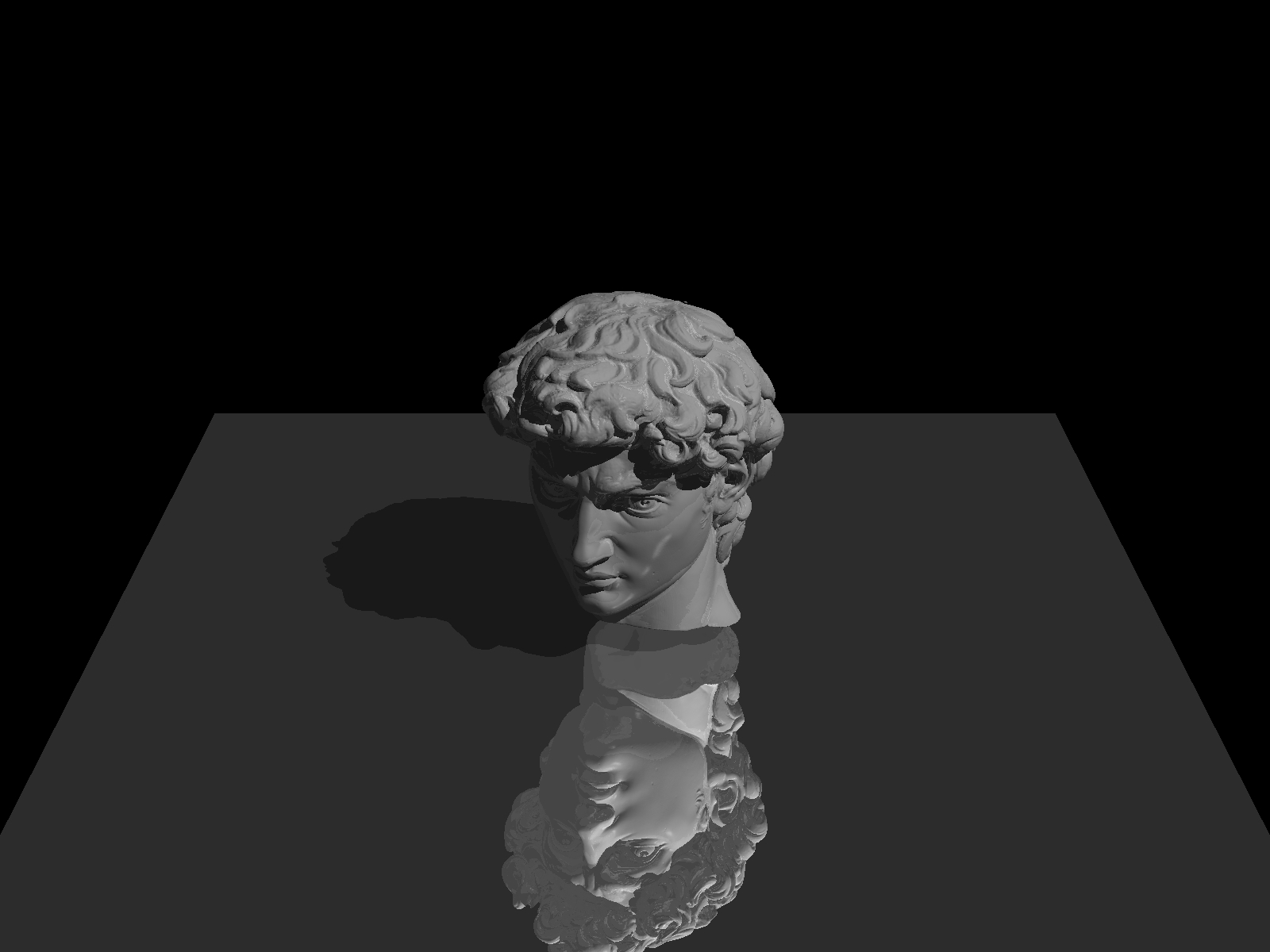

• The resulting image you would get from running your ray-tracer on the david.ray should look like:

  	Read: 23.1708 seconds Ray-traced: 3.97317 seconds Pixels: 1600 x 1200 Primitives: 5,269,880 Rays: 4,458,329 (2.32205 rays/pixel) Ray-primitive intersections: 12,263,943 (2.75079 intersections/ray) Ray-bounding-box intersections: 179,663,695 (40.2984 intersections/ray)

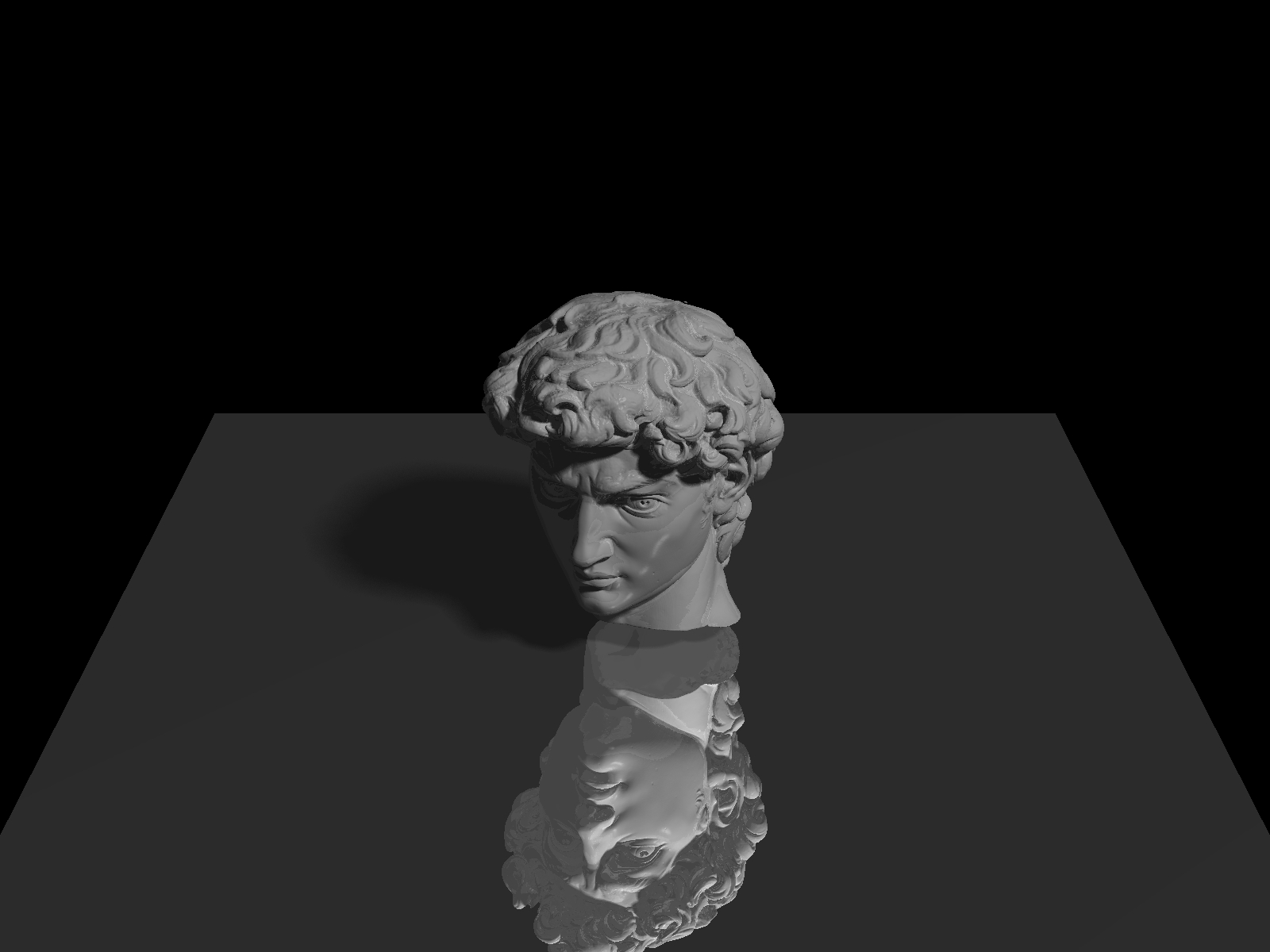

• The resulting image you would get from running your ray-tracer on the david.soft.ray should look like:

  	Read: 22.9722 seconds Ray-traced: 91.4933 seconds Pixels: 1600 x 1200 Primitives: 5,269,880 Rays: 130,939,442 (68.1976 rays/pixel) Ray-primitive intersections: 401,514,926 (3.06642 intersections/ray) Ray-bounding-box intersections: 4,285,093,116 (32.7258 intersections/ray) Cone-bounding-box intersections: 101,439,289 (0.774704 intersections/ray)
